PathChain implements continuous chain-driven transport systems following complex path networks. More...

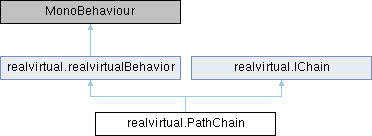

Inheritance diagram for realvirtual.PathChain:

Public Member Functions
Vector3	GetClosestDirection (Vector3 position)

Vector3	GetClosestPoint (Vector3 position)

Vector3	GetPosition (float normalizedposition, bool normalized=true)

Vector3	GetDirection (float normalizedposition, bool normalized=true)

Vector3	GetUpDirection (float normalizedposition, bool normalized=true)

float	CalculateLength ()

bool	UseSimulationPath ()

Public Member Functions inherited from realvirtual.realvirtualBehavior
void	PreStartSim ()
	Is called by the realvirtualController before the component is started.

void	StartSim ()
	Is called by the realvirtualController to start or stop the component.

void	StopSim ()

Vector3	DirectionToVector (DIRECTION direction)
	Transfers the direction enumeration to a vector.

DIRECTION	VectorToDirection (bool torotatoin, Vector3 vector)
	Transfers a vector to the direction enumeration.

float	GetLocalScale (Transform thetransform, DIRECTION direction)

List< BehaviorInterfaceConnection >	UpdateConnectionInfo ()

List< Signal >	GetConnectedSignals ()

void	SetVisibility (bool visibility)
	Sets the visibility of this object including all subobjects.

List< BehaviorInterfaceConnection >	GetConnections ()

List< Signal >	GetSignals ()

GameObject	GetChildByName (string name)
	Gets a child by name.

List< GameObject >	GetChildsByName (string name)
	Gets all child by name.

GameObject	GetChildByNameAlsoHidden (string name)

List< GameObject >	GetAllMeshesWithGroup (string group)

List< GameObject >	GetAllWithGroup (string group)

List< GameObject >	GetAllWithGroups (List< string > groups)

List< GameObject >	GetAllMeshesWithGroups (List< string > groups)

List< string >	GetMyGroups ()

List< GameObject >	GetMeshesWithSameGroups ()

List< GameObject >	GetAllWithSameGroups ()

MeshRenderer	GetMeshRenderer ()
	Gets the mesh renderers in the childrens.

void	SetCollider (bool enabled)
	sets the collider in all child objects

void	ErrorMessage (string message)
	Displays an error message.

void	ChangeConnectionMode (bool isconnected)

void	Log (string message)
	Logs a message.

void	Log (string message, object obj)
	Logs a message with a relation to an object.

void	Warning (string message, object obj)
	Logs a warinng with a relation to an object.

void	Error (string message, object obj)
	Logs an error with a relation to an object.

void	Error (string message)
	Logs an error.

GameObject	DebugPosition (string debugname, Vector3 position, Quaternion quaternation, float scale)
	Displays a gizmo for debugging positions.

void	SetFreezePosition (bool enabled)
	Freezes all child components to the current poosition.

void	SetRbConstraints (RigidbodyConstraints constraints)

virtual void	AwakeAlsoDeactivated ()

Public Attributes
SimulationPath	Startelement

List< SimulationPath >	PathForChain

float	Length

Public Attributes inherited from realvirtual.realvirtualBehavior
string	Name
	The name of the component if it should be different from the GameObject name.

ActiveOnly	Active

GameObject	FromTemplate

realvirtualController	realvirtualController

bool	HideNonG44Components

bool	SceneIsAdditive

bool	ForceStop

Additional Inherited Members
Public Types inherited from realvirtual.realvirtualBehavior
enum	ActiveOnly { Always , Connected , Disconnected , Never , DontChange }

Static Public Member Functions inherited from realvirtual.realvirtualBehavior
static bool	DirectionIsLinear (DIRECTION direction)
	Gets back if the direction is linear or a rotation.

Protected Member Functions inherited from realvirtual.realvirtualBehavior
bool	hidename ()

bool	hideactiveonly ()

virtual void	OnStopSim ()

virtual void	OnPreStartSim ()

virtual void	OnStartSim ()

MU	GetTopOfMu (GameObject obj)
	Gets the top of an MU component (the first MU script going up in the hierarchy)

void	InitGame4Automation ()
	Initialiates the components and gets the reference to the realvirtualController in the scene.

virtual void	AfterAwake ()

void	Awake ()

Detailed Description

PathChain implements continuous chain-driven transport systems following complex path networks.

This component enables simulation of chain conveyors, power-and-free systems, and circular transport loops where the chain follows a closed path through multiple connected SimulationPath segments. Automatically calculates total chain length from connected path elements and manages continuous movement around the circuit, making it ideal for overhead conveyors, assembly line carriers, and continuous material flow systems in automotive, electronics, and heavy industry applications.
