realvirtual.UDPInterface Class Reference

UDP communication interface for exchanging data with external applications via UDP protocol. More...

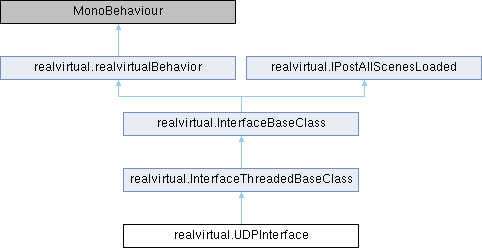

Inheritance diagram for realvirtual.UDPInterface:

Public Member Functions
override void	OpenInterface ()
override void	CloseInterface ()
void	Connect ()
void	Disconnect ()
void	FixedUpdate ()
void	Update ()
Public Member Functions inherited from realvirtual.InterfaceBaseClass
void	UpdateInterfaceSignals (ref int inputs, ref int outputs)
	Creates a new List of InterfaceSignals based on the Components under this Interface GameObject.
Signal	CreateSignalObject (string name, SIGNALTYPE type, SIGNALDIRECTION direction)
	Create a signal object as sub gameobject.
Signal	AddSignal (InterfaceSignal interfacesignal)
void	RemoveSignal (InterfaceSignal interfacesignal)
virtual GameObject	GetSignal (string name)
	Gets a signal with a name.
void	SetAllSignalStatus (bool connected)
void	DestroyAllSignals ()
void	DeleteSignals ()
virtual void	PostAllScenesLoaded ()
Public Member Functions inherited from realvirtual.realvirtualBehavior
virtual void	OnOwnershipChanged (bool isOwner)
	Called when network ownership changes.
void	SetNetworkOwner (bool isOwner)
	Sets IsNetworkOwner and triggers OnOwnershipChanged callback.
void	PreStartSim ()
	Is called by the realvirtualController before the component is started.
void	StartSim ()
	Is called by the realvirtualController to start or stop the component.
void	StopSim ()
Vector3	DirectionToVector (DIRECTION direction)
	Transfers the direction enumeration to a vector.
DIRECTION	VectorToDirection (bool torotatoin, Vector3 vector)
	Transfers a vector to the direction enumeration.
float	GetLocalScale (Transform thetransform, DIRECTION direction)
List< BehaviorInterfaceConnection >	UpdateConnectionInfo ()
List< Signal >	GetConnectedSignals ()
void	SetVisibility (bool visibility)
	Sets the visibility of this object including all subobjects.
List< BehaviorInterfaceConnection >	GetConnections ()
List< Signal >	GetSignals ()
GameObject	GetChildByName (string name)
	Gets a child by name.
List< GameObject >	GetChildsByName (string name)
	Gets all child by name.
GameObject	GetChildByNameAlsoHidden (string name)
List< GameObject >	GetAllMeshesWithGroup (string group)
List< GameObject >	GetAllWithGroup (string group)
List< GameObject >	GetAllWithGroups (List< string > groups)
List< GameObject >	GetAllMeshesWithGroups (List< string > groups)
List< string >	GetMyGroups ()
List< GameObject >	GetMeshesWithSameGroups ()
List< GameObject >	GetAllWithSameGroups ()
MeshRenderer	GetMeshRenderer ()
	Gets the mesh renderers in the childrens.
void	SetCollider (bool enabled, bool includeTriggers=true)
	sets the collider in all child objects
void	ErrorMessage (string message)
	Displays an error message.
void	ChangeConnectionMode (bool isconnected)
void	Log (string message)
	Logs a message.
void	Log (string message, object obj)
	Logs a message with a relation to an object.
void	Warning (string message, object obj)
	Logs a warning with a relation to an object.
void	Error (string message, object obj)
	Logs an error with a relation to an object.
void	Error (string message)
	Logs an error.
GameObject	DebugPosition (string debugname, Vector3 position, Quaternion quaternation, float scale)
	Displays a gizmo for debugging positions.
void	SetFreezePosition (bool enabled)
	Freezes all child components to the current poosition.
void	SetRbConstraints (RigidbodyConstraints constraints)
virtual void	AwakeAlsoDeactivated ()

Public Attributes
int	RemoteListenPort
	UDP port number on the remote machine where messages are sent.
int	LocalListenPort
	UDP port number on the local machine for receiving incoming messages.
string	RemoteIPAdress
	IP address of the remote machine to send UDP messages to.
int	Inputs
	Total number of INPUT signals configured (Unity to external application)
int	Outputs
	Total number of OUTPUT signals configured (external application to Unity)
int	SendingMessageSize
	Total size in bytes of the outgoing UDP message.
int	ReceivingMessageSize
	Total size in bytes of the incoming UDP message.
bool	DebugMode
	Enables detailed logging of sent and received UDP messages.
string	SymbolTable
	Path to the CSV symbol table file for automatic signal configuration.
string	SplitChar
	Character delimiter for separating CSV columns.
Public Attributes inherited from realvirtual.InterfaceThreadedBaseClass
int	MinUpdateCycle
int	CommCycleMeasures
int	CommCycleNr
int	CommTimeMs
int	CommTimeMin
float	CommTimeMed
int	CommTimeMax
int	CommCycleMeasureNum
int	UpdateCycleMs
string	ThreadStatus
int	MinUpdateCycle2
int	CommCycleNr2
int	CommTimeMs2
int	CommTimeMin2
float	CommTimeMed2
int	CommTimeMax2
int	CommCycleMeasureNum2
int	UpdateCycleMs2
string	ThreadStatus2
bool	NoThreading
bool	TwoThreads
Public Attributes inherited from realvirtual.InterfaceBaseClass
bool	IsConnected
List< InterfaceSignal >	InterfaceSignals
Hashtable	SignalNamesOutputs
Hashtable	SignalNamesInputs
Public Attributes inherited from realvirtual.realvirtualBehavior
string	Name
	The name of the component if it should be different from the GameObject name.
ActiveOnly	Active
GameObject	FromTemplate
realvirtualController	realvirtualController
bool	HideNonG44Components
bool	SceneIsAdditive
bool	ForceStop
bool	IsNetworkOwner
	True when this component owns its simulation (local authority). Set to false by MultiplayerWEB on remote clients.

Protected Member Functions
override void	CommunicationThreadUpdate ()
Protected Member Functions inherited from realvirtual.InterfaceThreadedBaseClass
virtual void	CommunicationThreadClose ()
virtual void	SecondCommunicationThreadUpdate ()
virtual void	SecondCommunicationThreadClose ()
Protected Member Functions inherited from realvirtual.InterfaceBaseClass
void	OnConnected ()
void	OnDisconnected ()
void	OnEnable ()
void	OnDisable ()
Protected Member Functions inherited from realvirtual.realvirtualBehavior
bool	hidename ()
bool	hideactiveonly ()
virtual void	OnStopSim ()
virtual void	OnPreStartSim ()
virtual void	OnStartSim ()
MU	GetTopOfMu (GameObject obj)
	Gets the top of an MU component (the first MU script going up in the hierarchy)
void	InitGame4Automation ()
	Initialiates the components and gets the reference to the realvirtualController in the scene.
virtual void	AfterAwake ()
void	Awake ()

Additional Inherited Members
Public Types inherited from realvirtual.realvirtualBehavior
enum	ActiveOnly {   Always , Connected , Disconnected , Never ,   DontChange }
Static Public Member Functions inherited from realvirtual.realvirtualBehavior
static bool	DirectionIsLinear (DIRECTION direction)
	Gets back if the direction is linear or a rotation.
Properties inherited from realvirtual.InterfaceBaseClass
virtual string	InterfaceDisplayName [get]
	Display name for interface in UI lists (removes "Interface" suffix by default, can be overridden for custom names)
virtual bool	ShowIsConnectedField [get]

Detailed Description

UDP communication interface for exchanging data with external applications via UDP protocol.

The UDPInterface enables bidirectional communication using UDP (User Datagram Protocol) for sending and receiving data between Unity and external applications like PLCs, SCADA systems, or custom tools. It supports automatic signal mapping from CSV symbol tables with byte-level data positioning.

Key Features:

• Bidirectional UDP communication with configurable ports
• CSV-based symbol table import for automatic signal configuration
• Supports BOOL, INT, REAL data types
• Automatic byte position calculation for signals
• Debug mode for message logging and troubleshooting

Signal Direction Mapping:

• INPUT signals: Unity → External application (sent on local port)
• OUTPUT signals: External application → Unity (received on remote port)

CSV Symbol Table Format:

• Column 1: Signal name
• Column 2: Data type (BOOL/INT/REAL/TEXT/STRING/WSTRING)
• Column 3: Direction (PLC_IN/PLC_OUT)

For detailed documentation see: https://doc.realvirtual.io/components-and-scripts/interfaces/udp-pro

Member Function Documentation

CloseInterface()

override void realvirtual.UDPInterface.CloseInterface ( )

virtual

Reimplemented from realvirtual.InterfaceThreadedBaseClass.

CommunicationThreadUpdate()

override void realvirtual.UDPInterface.CommunicationThreadUpdate ( )

protectedvirtual

Reimplemented from realvirtual.InterfaceThreadedBaseClass.

OpenInterface()

override void realvirtual.UDPInterface.OpenInterface ( )

virtual

Reimplemented from realvirtual.InterfaceThreadedBaseClass.

Member Data Documentation

DebugMode

bool realvirtual.UDPInterface.DebugMode

Enables detailed logging of sent and received UDP messages.

Inputs

int realvirtual.UDPInterface.Inputs

Total number of INPUT signals configured (Unity to external application)

LocalListenPort

int realvirtual.UDPInterface.LocalListenPort

UDP port number on the local machine for receiving incoming messages.

Outputs

int realvirtual.UDPInterface.Outputs

Total number of OUTPUT signals configured (external application to Unity)

ReceivingMessageSize

int realvirtual.UDPInterface.ReceivingMessageSize

Total size in bytes of the incoming UDP message.

RemoteIPAdress

string realvirtual.UDPInterface.RemoteIPAdress

IP address of the remote machine to send UDP messages to.

RemoteListenPort

int realvirtual.UDPInterface.RemoteListenPort

UDP port number on the remote machine where messages are sent.

SendingMessageSize

int realvirtual.UDPInterface.SendingMessageSize

Total size in bytes of the outgoing UDP message.

SplitChar

string realvirtual.UDPInterface.SplitChar

Character delimiter for separating CSV columns.

SymbolTable

string realvirtual.UDPInterface.SymbolTable

Path to the CSV symbol table file for automatic signal configuration.
