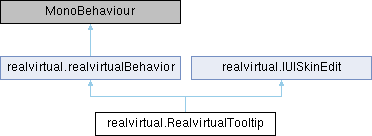

Inheritance diagram for realvirtual.RealvirtualTooltip:

Public Types
enum	Placement { Above , Below , Left , Right , Auto }

Public Types inherited from realvirtual.realvirtualBehavior
enum	ActiveOnly { Always , Connected , Disconnected , Never , DontChange }

Public Member Functions
void	SetTooltip (string tip)

void	SetPosition (Vector3 pos)

void	PositionRelativeTo (RectTransform targetRect, Placement preferredPlacement=Placement.Auto, float margin=DefaultMargin)
	Positions the tooltip relative to a target UI element with automatic screen boundary detection.

void	PositionRelativeTo (Vector3[] targetCorners, UI.Tooltipposition position, float margin=DefaultMargin)
	Positions the tooltip relative to a target using world corners (legacy compatibility).

float	GetHeight ()

float	GetWidth ()

float	getHeight ()

Public Member Functions inherited from realvirtual.realvirtualBehavior
virtual void	OnOwnershipChanged (bool isOwner)
	Called when network ownership changes.

void	SetNetworkOwner (bool isOwner)
	Sets IsNetworkOwner and triggers OnOwnershipChanged callback.

void	PreStartSim ()
	Is called by the realvirtualController before the component is started.

void	StartSim ()
	Is called by the realvirtualController to start or stop the component.

void	StopSim ()

Vector3	DirectionToVector (DIRECTION direction)
	Transfers the direction enumeration to a vector.

DIRECTION	VectorToDirection (bool torotatoin, Vector3 vector)
	Transfers a vector to the direction enumeration.

float	GetLocalScale (Transform thetransform, DIRECTION direction)

List< BehaviorInterfaceConnection >	UpdateConnectionInfo ()

List< Signal >	GetConnectedSignals ()

void	SetVisibility (bool visibility)
	Sets the visibility of this object including all subobjects.

List< BehaviorInterfaceConnection >	GetConnections ()

List< Signal >	GetSignals ()

GameObject	GetChildByName (string name)
	Gets a child by name.

List< GameObject >	GetChildsByName (string name)
	Gets all child by name.

GameObject	GetChildByNameAlsoHidden (string name)

List< GameObject >	GetAllMeshesWithGroup (string group)

List< GameObject >	GetAllWithGroup (string group)

List< GameObject >	GetAllWithGroups (List< string > groups)

List< GameObject >	GetAllMeshesWithGroups (List< string > groups)

List< string >	GetMyGroups ()

List< GameObject >	GetMeshesWithSameGroups ()

List< GameObject >	GetAllWithSameGroups ()

MeshRenderer	GetMeshRenderer ()
	Gets the mesh renderers in the childrens.

void	SetCollider (bool enabled, bool includeTriggers=true)
	sets the collider in all child objects

void	ErrorMessage (string message)
	Displays an error message.

void	ChangeConnectionMode (bool isconnected)

void	Log (string message)
	Logs a message.

void	Log (string message, object obj)
	Logs a message with a relation to an object.

void	Warning (string message, object obj)
	Logs a warning with a relation to an object.

void	Error (string message, object obj)
	Logs an error with a relation to an object.

void	Error (string message)
	Logs an error.

GameObject	DebugPosition (string debugname, Vector3 position, Quaternion quaternation, float scale)
	Displays a gizmo for debugging positions.

void	SetFreezePosition (bool enabled)
	Freezes all child components to the current poosition.

void	SetRbConstraints (RigidbodyConstraints constraints)

virtual void	AwakeAlsoDeactivated ()

Public Member Functions inherited from realvirtual.IUISkinEdit
void	UpdateUISkinParameter (RealvirtualUISkin skin)

Protected Member Functions
new void	Awake ()

Protected Member Functions inherited from realvirtual.realvirtualBehavior
bool	hidename ()

bool	hideactiveonly ()

virtual void	OnStopSim ()

virtual void	OnPreStartSim ()

virtual void	OnStartSim ()

MU	GetTopOfMu (GameObject obj)
	Gets the top of an MU component (the first MU script going up in the hierarchy)

void	InitGame4Automation ()
	Initialiates the components and gets the reference to the realvirtualController in the scene.

virtual void	AfterAwake ()

void	Awake ()

Additional Inherited Members
Static Public Member Functions inherited from realvirtual.realvirtualBehavior
static bool	DirectionIsLinear (DIRECTION direction)
	Gets back if the direction is linear or a rotation.

Public Attributes inherited from realvirtual.realvirtualBehavior
string	Name
	The name of the component if it should be different from the GameObject name.

ActiveOnly	Active

GameObject	FromTemplate

realvirtualController	realvirtualController

bool	HideNonG44Components

bool	SceneIsAdditive

bool	ForceStop

bool	IsNetworkOwner
	True when this component owns its simulation (local authority). Set to false by MultiplayerWEB on remote clients.

Member Function Documentation

◆ PositionRelativeTo() [1/2]

void realvirtual.RealvirtualTooltip.PositionRelativeTo	(	RectTransform	targetRect,
		Placement	preferredPlacement = `Placement::Auto`,
		float	margin = `DefaultMargin`
	)

Positions the tooltip relative to a target UI element with automatic screen boundary detection.

◆ PositionRelativeTo() [2/2]

void realvirtual.RealvirtualTooltip.PositionRelativeTo	(	Vector3[]	targetCorners,
		UI::Tooltipposition	position,
		float	margin = `DefaultMargin`
	)

Positions the tooltip relative to a target using world corners (legacy compatibility).
