Foundation for industrial human-machine interface components providing interactive controls for automation systems. More...

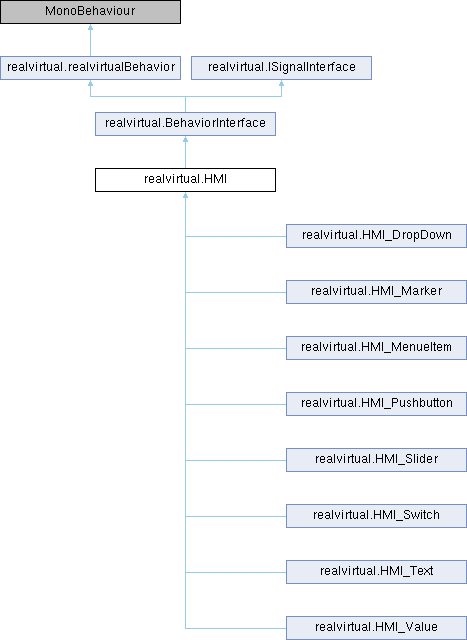

Inheritance diagram for realvirtual.HMI:

Public Member Functions
TextMeshProUGUI	GetText (string objName)

Image	GetImage (string objName)

virtual void	CloseExtendedArea (Vector3 pos)

virtual void	Init ()

void	OnValueChanged ()

Canvas	GetCanvas (GameObject HMIelement, ref RectTransform rectTransform)

void	OnTransformParentChanged ()

void	UpdateUISkinParameter (RealvirtualUISkin skin)

Public Member Functions inherited from realvirtual.BehaviorInterface
new List< BehaviorInterfaceConnection >	GetConnections ()
	Returns a list of behavior interface connections for this component.

new List< Signal >	GetSignals ()
	Returns a list of connected signals for this component.

Public Member Functions inherited from realvirtual.realvirtualBehavior
void	PreStartSim ()
	Is called by the realvirtualController before the component is started.

void	StartSim ()
	Is called by the realvirtualController to start or stop the component.

void	StopSim ()

Vector3	DirectionToVector (DIRECTION direction)
	Transfers the direction enumeration to a vector.

DIRECTION	VectorToDirection (bool torotatoin, Vector3 vector)
	Transfers a vector to the direction enumeration.

float	GetLocalScale (Transform thetransform, DIRECTION direction)

List< BehaviorInterfaceConnection >	UpdateConnectionInfo ()

List< Signal >	GetConnectedSignals ()

void	SetVisibility (bool visibility)
	Sets the visibility of this object including all subobjects.

List< BehaviorInterfaceConnection >	GetConnections ()

List< Signal >	GetSignals ()

GameObject	GetChildByName (string name)
	Gets a child by name.

List< GameObject >	GetChildsByName (string name)
	Gets all child by name.

GameObject	GetChildByNameAlsoHidden (string name)

List< GameObject >	GetAllMeshesWithGroup (string group)

List< GameObject >	GetAllWithGroup (string group)

List< GameObject >	GetAllWithGroups (List< string > groups)

List< GameObject >	GetAllMeshesWithGroups (List< string > groups)

List< string >	GetMyGroups ()

List< GameObject >	GetMeshesWithSameGroups ()

List< GameObject >	GetAllWithSameGroups ()

MeshRenderer	GetMeshRenderer ()
	Gets the mesh renderers in the childrens.

void	SetCollider (bool enabled)
	sets the collider in all child objects

void	ErrorMessage (string message)
	Displays an error message.

void	ChangeConnectionMode (bool isconnected)

void	Log (string message)
	Logs a message.

void	Log (string message, object obj)
	Logs a message with a relation to an object.

void	Warning (string message, object obj)
	Logs a warinng with a relation to an object.

void	Error (string message, object obj)
	Logs an error with a relation to an object.

void	Error (string message)
	Logs an error.

GameObject	DebugPosition (string debugname, Vector3 position, Quaternion quaternation, float scale)
	Displays a gizmo for debugging positions.

void	SetFreezePosition (bool enabled)
	Freezes all child components to the current poosition.

void	SetRbConstraints (RigidbodyConstraints constraints)

virtual void	AwakeAlsoDeactivated ()

Public Attributes
Color	Color
	Color of the HMI element.

Color	ColorMouseOver
	Color of the HMI element when the mouse is over it.

RealVirtualHMIEvent	EventOnValueChanged
	Event that is triggered when the value of the HMI element changes.

Image	bgImg

Public Attributes inherited from realvirtual.BehaviorInterface
List< BehaviorInterfaceConnection >	ConnectionInfo

Public Attributes inherited from realvirtual.realvirtualBehavior
string	Name
	The name of the component if it should be different from the GameObject name.

ActiveOnly	Active

GameObject	FromTemplate

realvirtualController	realvirtualController

bool	HideNonG44Components

bool	SceneIsAdditive

bool	ForceStop

Additional Inherited Members
Public Types inherited from realvirtual.realvirtualBehavior
enum	ActiveOnly { Always , Connected , Disconnected , Never , DontChange }

Static Public Member Functions inherited from realvirtual.realvirtualBehavior
static bool	DirectionIsLinear (DIRECTION direction)
	Gets back if the direction is linear or a rotation.

Protected Member Functions inherited from realvirtual.realvirtualBehavior
bool	hidename ()

bool	hideactiveonly ()

virtual void	OnStopSim ()

virtual void	OnPreStartSim ()

virtual void	OnStartSim ()

MU	GetTopOfMu (GameObject obj)
	Gets the top of an MU component (the first MU script going up in the hierarchy)

void	InitGame4Automation ()
	Initialiates the components and gets the reference to the realvirtualController in the scene.

virtual void	AfterAwake ()

void	Awake ()

Properties inherited from realvirtual.ISignalInterface
GameObject	gameObject `[get]`

Detailed Description

Foundation for industrial human-machine interface components providing interactive controls for automation systems.

This professional base class enables creation of industrial HMI elements with signal integration, event handling, and visual feedback. Supports both 2D screen-based and 3D spatial interfaces for operator panels, machine controls, and process visualization in virtual commissioning and training scenarios.

Member Function Documentation

◆ UpdateUISkinParameter()

void realvirtual.HMI.UpdateUISkinParameter ( RealvirtualUISkin skin )

Implements realvirtual.IUISkinEdit.

Member Data Documentation

◆ Color

Color realvirtual.HMI.Color

Color of the HMI element.

◆ ColorMouseOver

Color realvirtual.HMI.ColorMouseOver

Color of the HMI element when the mouse is over it.

◆ EventOnValueChanged

RealVirtualHMIEvent realvirtual.HMI.EventOnValueChanged

Event that is triggered when the value of the HMI element changes.

Public Member Functions

Public Attributes

Additional Inherited Members
