A UNIVERSAL DIGITAL TWIN FOR MECHANICAL AND AUTOMATION ENGINEERING

For sales visualization, concept simulation, virtual commissioning and as real-time 3D HMI.

BEST PERFORMANCE

Real-Time 3D, an integrated physics engine, and photorealistic visualization based on the leading Unity game engine.

ENABLE YOUR BUSINESS

Make the Digital Twin your own property and integrate it into your own solution. Define your own business model based on the Digital Twin and deliver the Digital Twin freely to your customers.

A DIGITAL TWIN FOR ALL PLATTFORMS

Deploy your Digital Twin on Windows, Linux, Android, or iOS, all from one development base.

OPEN AND EXTANDABLE

Based on the open Unity development environment with infinite solutions and resources available from hundreds of thousands of developers worldwide.

Demo

Training

Webcast

"In search of alternatives to the well-known big providers of software solutions for digital twins, I came across realvirtual.io. Not only the price is convincing with this asset, it simply works really well and is very performant in visualization even with complex and large simulations! I had no experience with Unity before and still had no problems with the implementation of my first digital twin."

"The best part is that realvirtual.io along with Unity can easily handle huge complex CAD simulations without losing performance which the other softwares in market fail to deliver."

"We just did a pilot with a bigger line for virtual commissioning. This is a very good asset. The guys now what they do. Compared with another Digital Twin asset on the asset store and with a lot of very expensive non Unity based solutions this is for sure one of the best solutions. Not only for virtual commissioning. You can do so many things with this."

"Congratulations! This is a fantastic product. I'm just starting to develop a digital twin and this is superb. Well done!"

"Great support and very useful for the communication with a plc without writing the whole c# scripts on your own. It has also a good documentation and a demo for the first steps with the asset."

"Powerfull tool for creating a digital twin. If you also compare the license costs with other products, this asset is a real benefit for anyone who deals with the topic of virtual commissioning."

"As a university, we repeatedly test software, tools and assets we can use for our projects or in teaching. Unity offers many possibilities that industrial software does not offer. If you also compare the license costs with other products, this asset is a real benefit for anyone who deals with the topic of virtual commissioning."

"Ich bin sehr beeindruckt von realvirtual.io! Was ich bis jetzt sehe ist das genau das was Maschinenprogrammierer vorrangig benötigen: ein Test des Maschinenprograms ohne die echte Maschine. Jeder der schon mal in dieser Situation war weiss das zu schätzen."

"I am in the robotics manufacturing field and this asset completed a digital twin loop for my process."

"This asset is very powerful, it has many features constantly updated and it is open. Additionaly it is cheaper than any other software for simulation. I suggest it to everyone, but especially for simulation developers that want to create a new concept of digital twin that merge the automation world with the gaming world."

DIGITAL TWINS WITH UNITY

Create flawless digital twins of machines and production systems using our open, expandable software powered by the Unity game engine. Whether it's simulation, visualization, virtual commissioning, or real-time 3D HMIs, our software covers it all.

realvirtual.io offers a complete solution, providing CAD interfaces, kinematic components, drives, sensors, and interfaces to industrial automation systems.

The best part? Your digital twin is truly yours. Say goodbye to limitations and high costs. With our framework, access open-source code and run your digital twin license-free on various platforms.

FOR MECHANICAL ENGINEERING

Designed exclusively for mechanical and automation engineering, realvirtual.io Professional takes your CAD data to new heights.

Experience realistic simulations for design and virtual commissioning like never before. Seamlessly integrating with robotics and industrial controllers such as ABB Robotstudio, OPCUA, Siemens S7, TwinCAT, and more, our automation interfaces ensure a direct link to the real controller. Your vision, now a tangible reality.

REAL TIME 3D - BEYOND VIRTUAL COMMISSIONING

realvirtual.io is not just a virtual commissioning tool; it's a gateway to tailored business models, free from stifling license restrictions.

From a single model, your digital twin transforms into a native application compatible with Windows, Linux, WebGL, iOS, Mac, and Android.

Harness it as a training system, craft high-end videos, develop captivating cell phone apps for marketing and trade shows, delve into AR applications, or innovate with a groundbreaking 3D HMI for actual machines. With realvirtual.io, the horizons are boundless.

USE CASES

High end 3D visualization of automation solutions

Cooperative engineering, virtual reality and augmented reality.

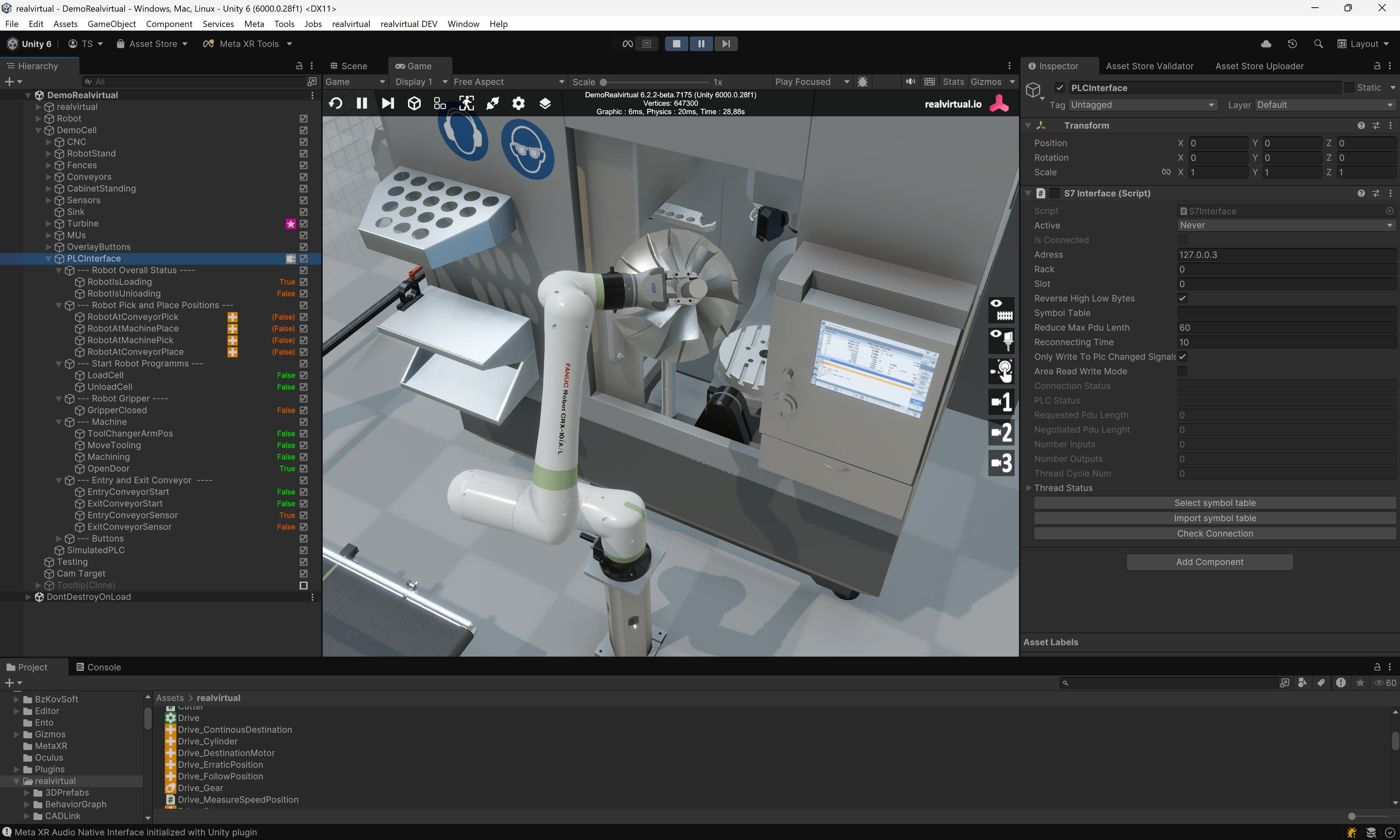

Applying the 3D models to virtual commissioning and control testing

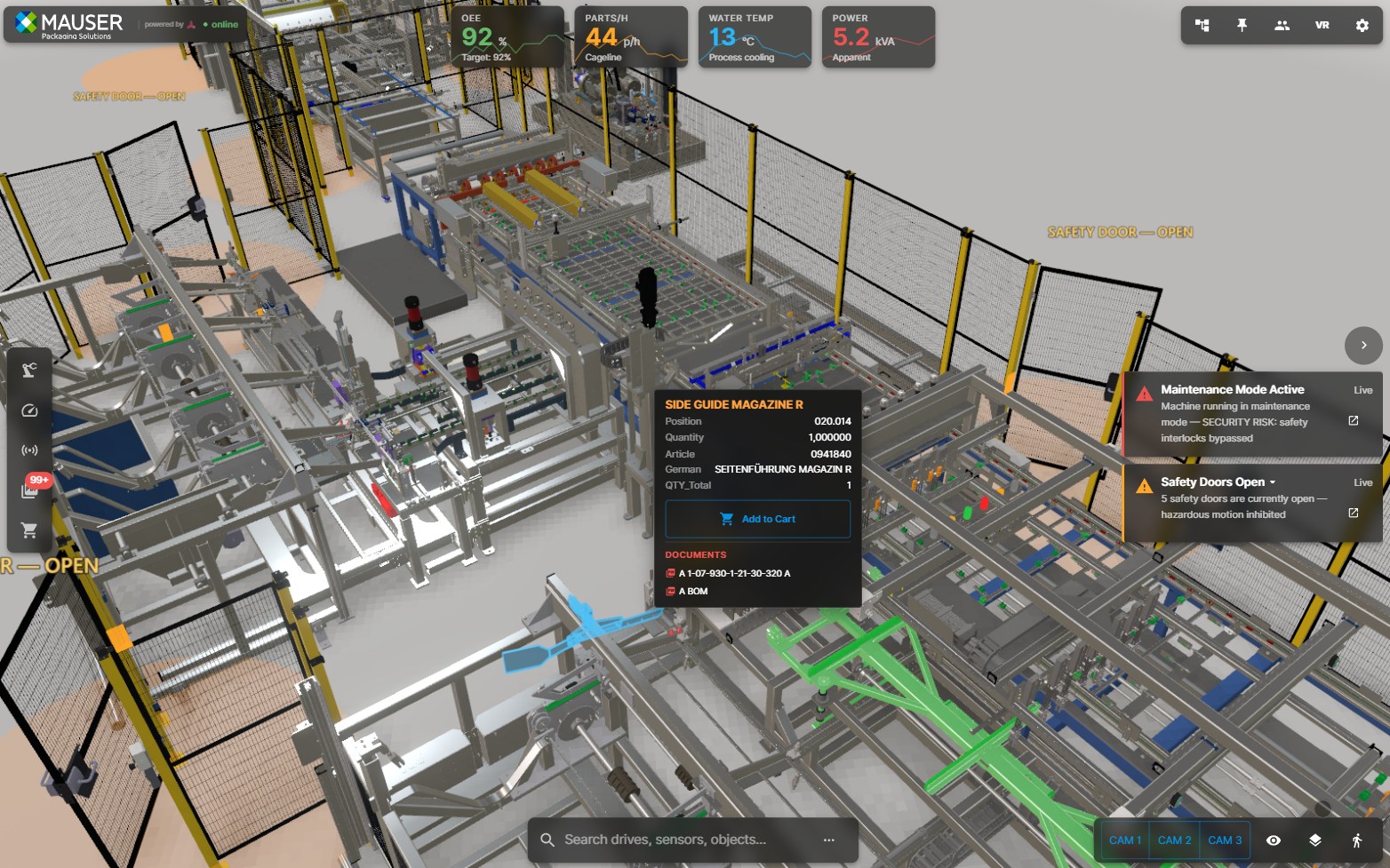

3D HMI and integration of the digital twin into your own solution.

THE POWER OF GAME TECHNOLOGY

Leveraging game technology for industrial engineering ushers in a new era of performance and innovation. The dynamic capabilities of game engines, like Unity, provide an unparalleled platform for real-time simulations, rendering intricate mechanical interactions and complex systems.

This fusion of gaming prowess with industrial engineering not only enhances visualization but also enables precise analysis, virtual prototyping, and streamlined design processes, ultimately driving efficiency.

FEATURES

CAD Interfaces
Step and 3MF updateable CAD interface
Interfaces based on PixYZ to Solidworks, Solidedge, NX, JT, Parasolid, Catia, ProE-Creo, Autocad

Mechatronic Components
Components for drives, gears, sensors, gripping, cylinders, buttons, lamps, signals and more.

Automation Interfaces
Simit (Profibus, Profinet), PLCSimAdvanced, S7-300 and S7-1500 (TCP-IP), TwinCAT, OPCUA, Modbus, ABB RobotStudio, FMU/FMI, RoboDK, EthernetIP, MQTT and UniversalRobots.

Free Deployment
Free distribution of your digital twin on Android, IOs, Windows devices and on the Web (Standard Unity functions).

CAD INTEGRATION

realvirtual.io Professional includes a importers for CAD data based on the STEP and 3MF formats, thus offering flexible CAD integration. CAD data can be updated without losing the mechatronic information in realvirtual.

Addtional CAD formats can be imported by the use of PIXYZ like for example JT, AutoCAD 3D, Catia, NX, Solidworks, Solidedge, CreoPro / E. PiXYZ is not included in realvirtual.io and must be purchased separately.

GAME WITH OPEN CARDS

realvirtual is highly extensible. Utilize the open development ecosystem of Unity, explore the Unity Asset Store, and tap into boundless online resources to expand your digital twin according to your requirements.

The source code of realvirtual.io is shared, making it open to our valued customers.

AUTOMATION INTERFACES

realvirtual.io includes interfaces to Beckhoff TwinCAT, Simit, PLCSim Advanced and over TCP-IP to Siemens hardware such as. S7-300, S7-1500, Sinumerik and Simotion.

Connections to Robot Controllers like ABB Robot Studio, RoboDK or URSIM from Universal Robots can be used to test and validate industrial robot system.s

Countless other controllers can be connected thanks to Industry 4.0’s OPC UA protocol

The behavioral model can be developed either in Simit or directly in realvirtual.io based on templates in C #.

If required, the fieldbus systems Profibus and Profinet can be connected directly via Simit via the export of the hardware configuration from Step7 or TIA Portal.

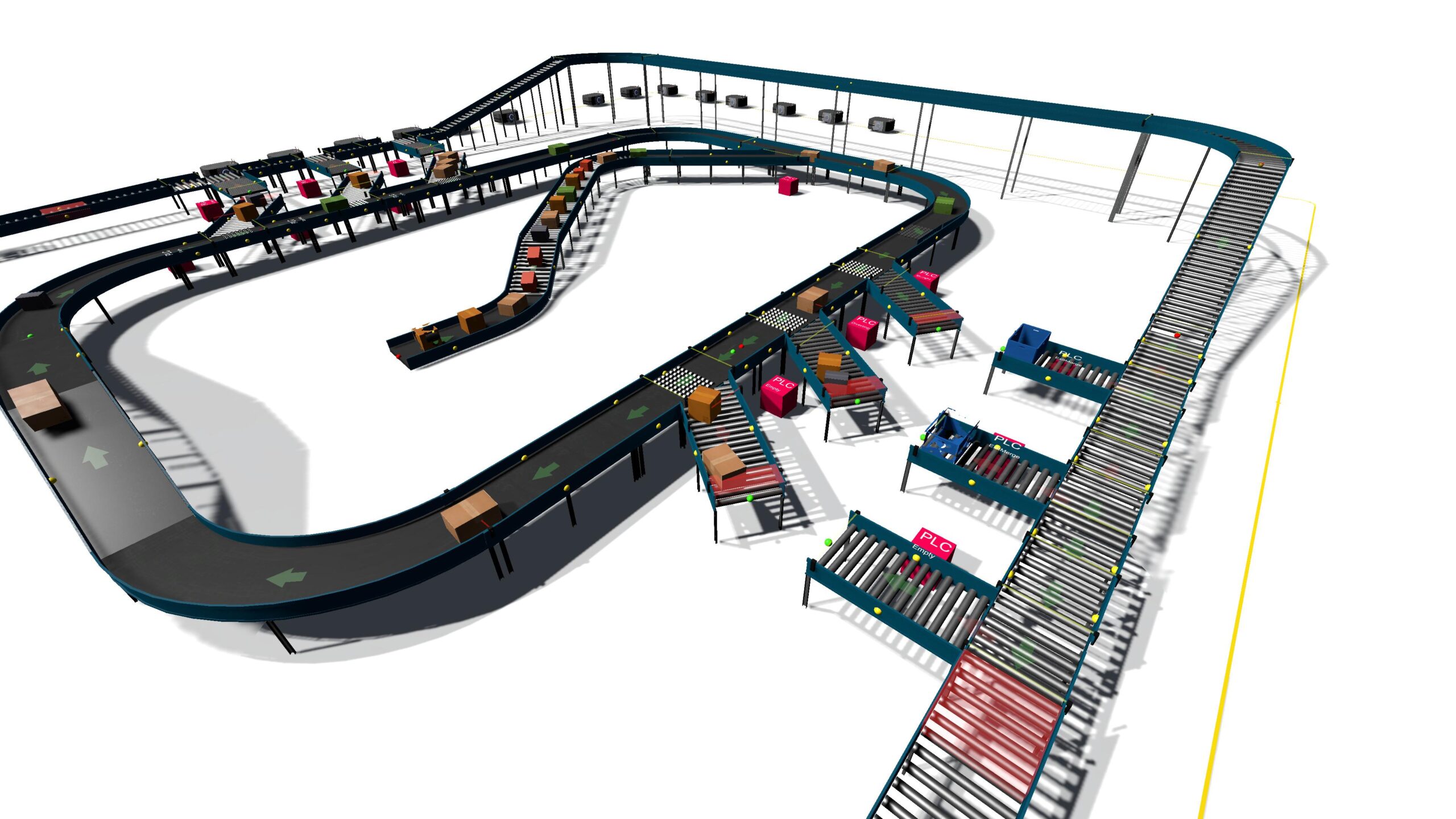

MATERIAL FLOW SIMULATION WITH REALVIRTUAL.IO SIMULATION

realvirtual.io Simulation is based on realvirtual.io Starter or Professional. The library enables the simulation of path-based material flow processes such as automated guided vehicles, power & free systems as well as the physics-based simulation of accumulating conveyor technology.

The continuous and high-performance material flow simulation enables the detailed modeling of all industrial sensors such as laser scanners or camera systems. With Unity Simulations & Unity ML Agents, logic and control strategies can be tested realistically and even neural networks can be trained.

DRAG & DROP AND PARAMETRIC COMPONENTS

The library is fully parametric and enables the rapid construction of intralogistics systems with the help of snap points.

All components are open source and can be extended as desired.

The simulation of the material flow is extremely realistic and is based on the physics engine included in Unity. The simulation can be accelerated or slowed down up to 100 times. Due to the continuous realistic simulation, the control can be developed and tested realistically.

VR AND AR READY

As realvirtual.io is based on Unity, it delivers the best VR and AR experience. The digital twin can be experienced with devices such as HTC VIVE, OCULUS RIFT or the new Microsoft Hololens 2. Dive into your digital twin!

Picture Microsoft

TUTORIAL ADDING DRIVES

TUTORIAL TRANSPORT SYSTEM

GET YOUR DIGITAL TWIN ON THE UNITY ASSET STORE

realvirtual.io is licensed under the Unity Asset Store License Conditions.

Please note that a valid Unity Unity license to use the realvirtual.io platform and that Unity itself is NOT provided in our delivery. Unity is free for some private and non-commercial applications. For more information, please visit Unity's product page.

Starter-Version

€10

price excluding VAT
Full realvirtual.io framework
Siemens S7 TCP-IP interface included
Access to all Siemens Hardware (S7-300,S7-400, S7-1200, S7-1500, Sinumerik and Simotion)
Purchase in the Unity Asset Store

Professional-Version

€820

price excluding VAT
Preferred support

Full realvirtual.io framework

CADLink CAD Interfaced based on STEP and 3MF file

Siemens S7 TCP-IP interface included

Access to Siemens controller (S7-300,S7-400, S7-1200, S7-1500, Sinumerik und Simotion)

Additional OPCUA, Simit, PLCSimAdvanced, RoboDK, Modbus, ABB RobotStudio, FMU-FMI,TwinCAT, EthernetIP, MQTT and UniversalRobots Interface

Visual Scripting with PlayMaker

Purchase in the Unity Asset Stroe

Simulation

€540

price excluding VAT
Fully parametric materials handling library

. Simulation and Virtual Commissioning

Starter or Professional required as base

Physical simulation of conveyor technology

Simulation of path based systems like AGVs and Power & Free

Snap-Points

Open source code and extensible

Linear conveyors, curved conveyors (belt/roller)

Directional rollers

Chain trasfer

Crossbelt sorter

Shoe sorter

Path based line and curve

Source, Sink

Research and Education Bundle

€2100

price excluding VAT

Preferred Support

20 user licenses realvirtual.io Professional for Digital Twins in the machinery industry (including CADLink, OPCUA, TwinCAT etc.)

For classrooms, student groops, researchers and schools

Only for research and education

Commercial use is not permitted

TRAINING AND SERVICE

The platform is made as user friendly and convenient as possible, but a wide range of additional services are also provided which will assist you in your progress with the tool. Please contact us with this form.

TECHNOLOGY PARTNERS

SERVICE PARTNERS

Send us questions or comments

OUR MISSION

realvirtual.io is a brand of realvirtual GmbH. With 18 years of experience in creating applications and distributing simulation and commissioning software for industrial production systems, we understand the need to adapt to new trends and make new technologies accessible for mechanical design and industrial automation users.

At realvirtual.io, we are committed to an open and service-focused approach, without innovation-inhibiting and costly sales structures. Our goal is to make Unity gaming technology accessible to industrial users, as it outperforms commercial solutions from well-known providers in terms of performance, openness, and user-friendliness.

Our software is perfect for tech-savvy users who seek more than off-the-shelf "out-of-the-box" software, and we strive to provide cutting-edge solutions to meet the evolving needs of the industry.
